SKU: 0601061S40

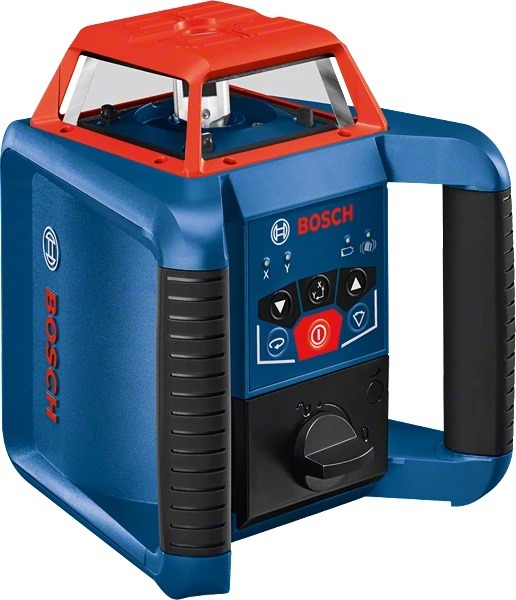

Bosch GRL 350 HV Professional Rotation Laser
GRL 350 HV/0601061S40
Rotary laser for horizontal and vertical application with manual dual slope
Versatile – Horizontal and vertical manual dual slope function enable change in grade in two-axis application
Flexible – Variable-speed and Scan-angle selection allow optimum usability at different lighting conditions
Robust – IP 56 rated to protect against dust and water for tough jobsite conditions, with shock-warning function to alert error due to vibration
Technical Data:
Laser diode: 630 – 650 nm,< 5mW
Operating temperature: -10 – 50 °C
Storage temperature: -20 – 70 °C
Laser class: 3R
Working range:* up to 60 m
Working range with receiver:* up to 350 m (Diameter)
Accuracy:* ± 1.5 mm at 30m horizontal, ± 3.0 mm at 30m vertical
Self-levelling range: ± 5° (8%)
Levelling time: 30 s
Dust and splash protection: IP 56
Rotation speed: 0/150/300/600 minˆ’1
Power supply: 2 x 1.5 V LR20 (D)
Operating time (max.): 30 h
Tripod thread: 5/8″
Weight, approx:** 1.8 kg
Colour of laser line: Red
Color of plumb points: Red
Included:
Receiver bracket RB 30
Order number: 2 610 A14 830
Laser viewing glasses red (BL-GLASS)
Order number: 1 608 M00 05B
Universal mount WM 4 Professional
Order number: 0 601 092 400
2 x 1.5 V LR20 battery (D)
Laser receiver LR 30 Professional
Laser target
Order number: 1 608 M00 70B
1 x 9 V block battery (6LR61)
Call for Price
