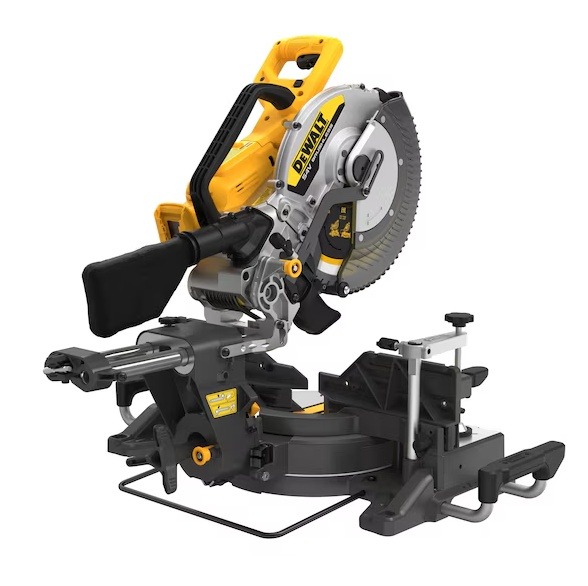

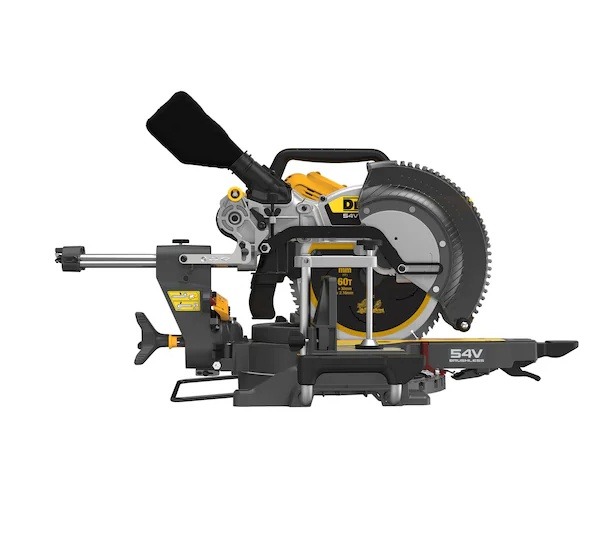

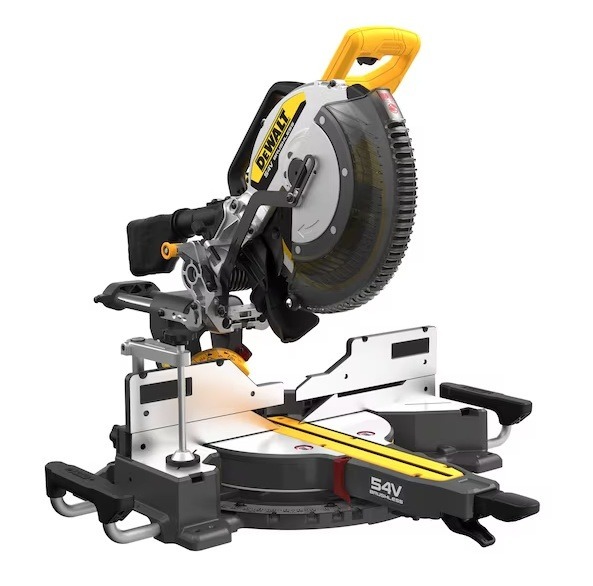

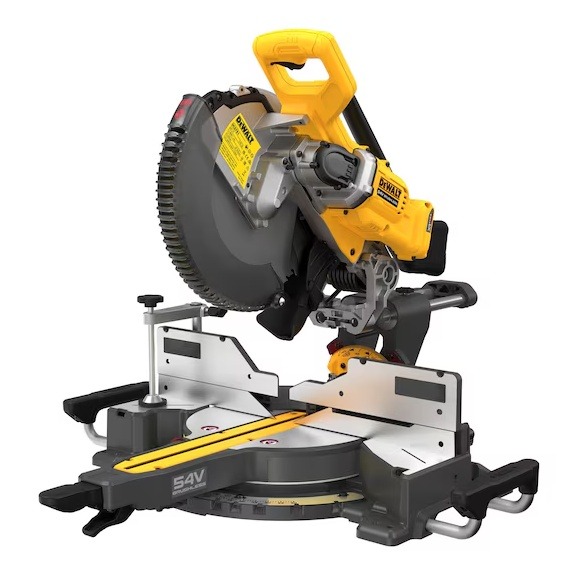

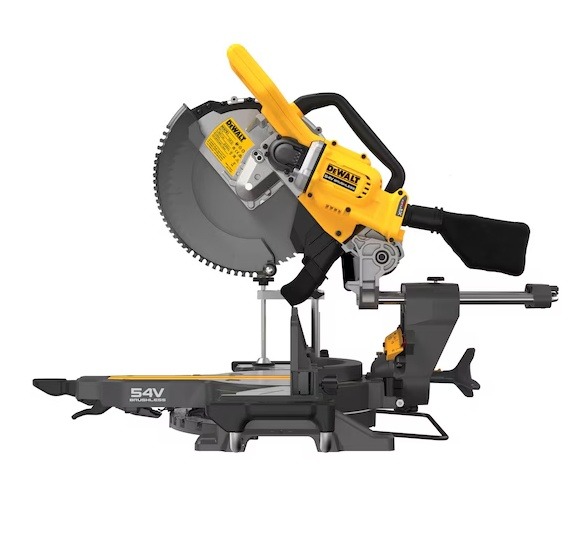

DEWALT DCS781N-XE 54V XR FLEXVOLT 305mm MITRE SAW – Bare Unit

DEWALT DCS781N-XE 54V XR FLEXVOLT 305mm MITRE SAW – Bare Unit

Bonus Flexvolt 6ah Battery and Charger Via Redemption

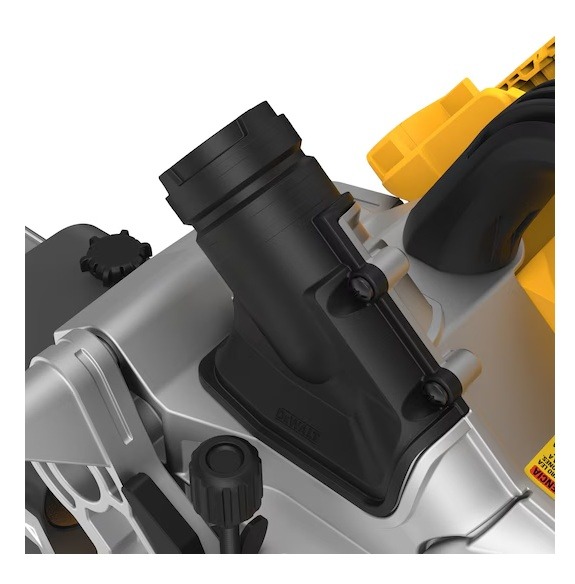

• AirLock compatible dust extraction provides cleaner and safer jobsites
• Wireless Tool Control allows direct connection to a compatible vac, which provides increased runtime and improves efficiency

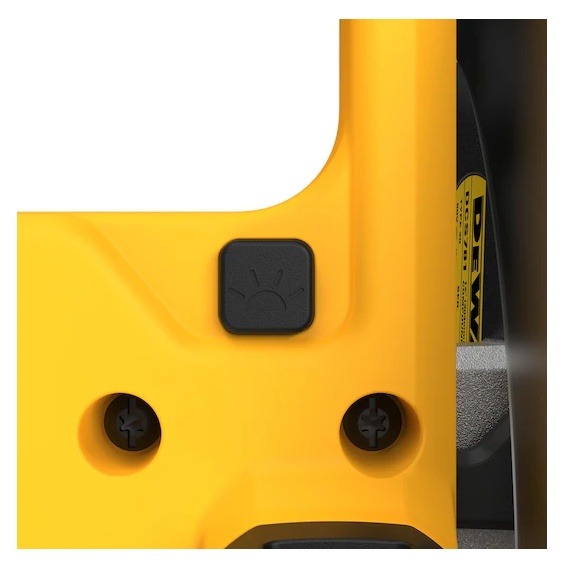

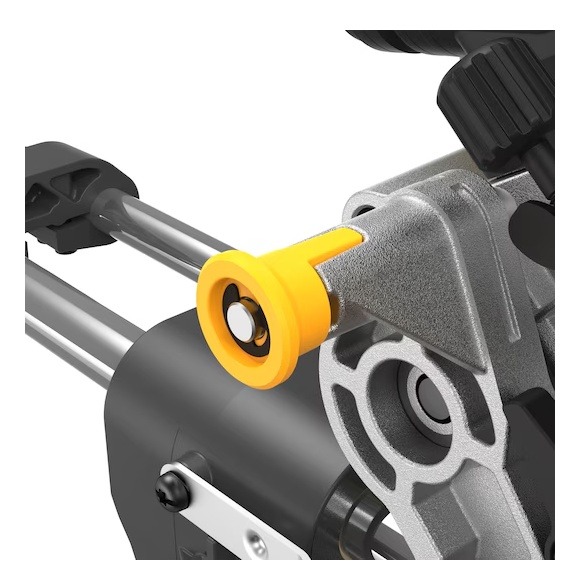

• XPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment required

Product Overview

The DCS781 is the ultimate cordless Mitre Saw for first and second fix applications on the jobsite and can deliver up to 675 cuts in 83mm skirting board with one 9Ah XR Flexvolt battery.
The powerful 54V brushless motor offers a cutting capacity of 310 x 90mm, with a 165mm height capacity at the fence and the Regenerative Braking Technology extends runtime by redirecting lost energy back into the battery. Engineered for repeatable accuracy with dual horizontal rails and a stainless steel detent plate with common angles at 0, 15, 22.5, 31.6, 35.3 and 45 degrees.
Other features include Wireless Tool Control to enable automatic stop start dust extraction when used with the DCV586M, XPS crosscut positioning system for the ultimate in accuracy and visibility with no calibration needed and 100mm extendable side handles for material support and increased portability on site.

Additional Features

• Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the jobsite
• The large 120mm high dual sliding fence gives maximum support in large material cuts at any angle or combination of angles
• Outstanding cutting performance in both small profiles and large construction timbers up to 90 x 310 mm

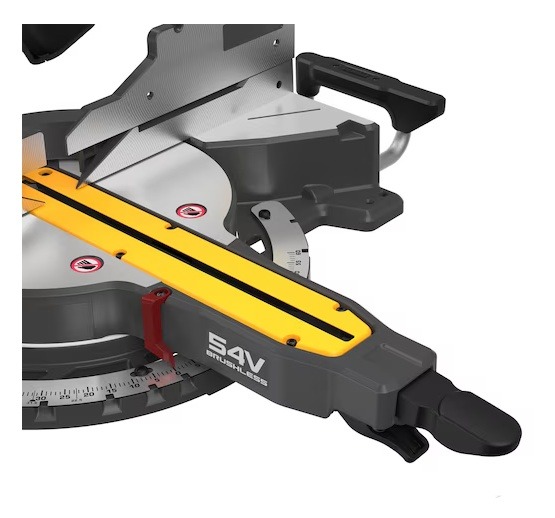

• Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0? – 50? left and 0? – 60? right

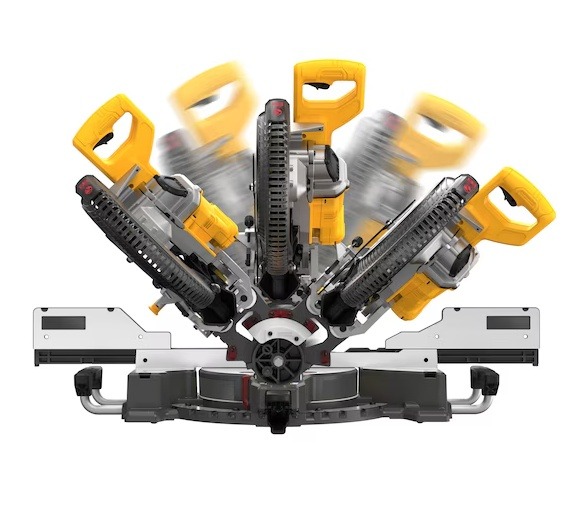

• Intuitive bevel lock with machined stops provides accurate and simple setting of bevel angles up to 49? left and right
• Side extension handles improve portability and handling whilst providing a stable, base for wider material
• The innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
• Base and fence designed, machined and checked to the highest standards of accuracy to deliver 0.1? accuracy in key applications
• Exceptional runtime performance is achieved through a combination of blade, brushless motor design and regenerative braking technology

Specifications

Blade Bore [Metric] – 25.4 mm

Blade Speed – 3800 rpm

Max. Cutting Capacity (45?/45?) [Metric] – 219 x 54 mm

Max. Depth of Cut [Metric] – 165 x 19 mm

Saw Blade Thickness [Metric] – 2.16 mm

Max. Cutting Capacity (90?/90?) [Metric] – 310 x 90 mm

Product Width [Metric] – 495 mm

No Load Speed (RPM) – 3800

Max. Cutting Capacity (45?/90?) [Metric] – 219 x 90 mm

Product Height [Metric] – 450 mm

Product Weight [Metric] – 23.2 Kg

Blade Diameter [Metric] – 305 mm

Max. Cutting Capacity (90?/45?) [Metric] – 310 x 54 mm

Power Source – Cordless

Voltage – 54 V

Product Length [Metric] – 775 mm

Includes

• (1) 60T XR EXTREME RUNTIME 305mm Blade
• (1) Stabilizer Bar
• (2) Base Extensions
• (1) Material Clamp

Note: Due to shipping limits this unit is collection only.
