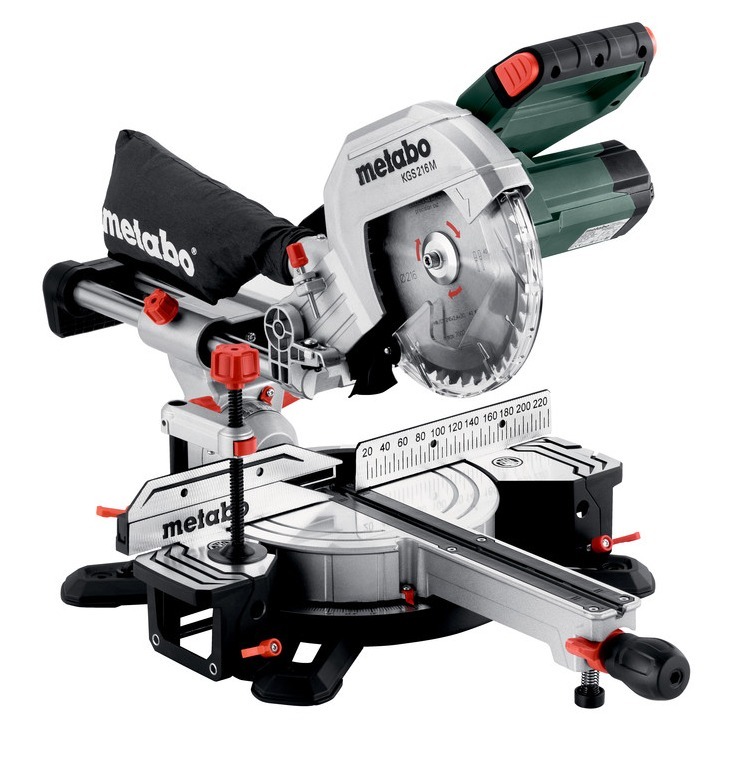

Metabo KGS216M Mitre Saw 216mm (613216190)

Metabo KGS216M Mitre Saw 216mm  (613216190)

Product Description

Crosscut and mitre saw of the mobile M-class with sliding function – light, precise, user-friendly

Precision Cut Line (PCL): precise shadow cutting line without re-adjustment thanks to cleverly positioned LED

Large cutting capacity thanks to sliding function for wide work pieces

Turntable with fast, precise setting of common angles using stop points

Saw blade inclination from -2 to 47°, therefore also suited for undercuts

Robust die-cast aluminium design for the highest demands

Effective dust extraction via integrated dust scoop

Soft start for long service life of motor and drive

Extendable table width extensions, also removable to put underneath extremely long work pieces

Quick-action clamp for secure fixing of the work piece from the top or front

Depth guide for easy creation of grooves

All scales and operating elements are visible from the working position and can be operated intuitively

Ergonomic handle areas for carrying with one or two hands

Technical Data

Dimensions710 x 476 x 512 mm

Support surface345 x 730 mm

Maximum cutting width 90°/45°305 / 215 mm

Maximum cutting depth at 90°/45°70 / 40 mm

Cutting capacity 90°/90°305 x 70 mm

Cutting capacity 45°/45°215 x 40 mm

Turntable setting left/right50 / 50 °

Saw blade tilt left/right47 / 2 °

Saw blade216 x 30 mm

Rated input power1200 W

Rated input power S1 100%1200 W

Rated input power S6 20%1500 W

No-load speed5000 rpm

Speed at rated load3750 rpm

Cutting speed57 m/s

Weight13.4 kg

Cable length2 m

Noise emission

Sound pressure level85 dB(A)

Sound power level (LwA)98 dB(A)

Uncertainty of measurement K3 dB(A)
