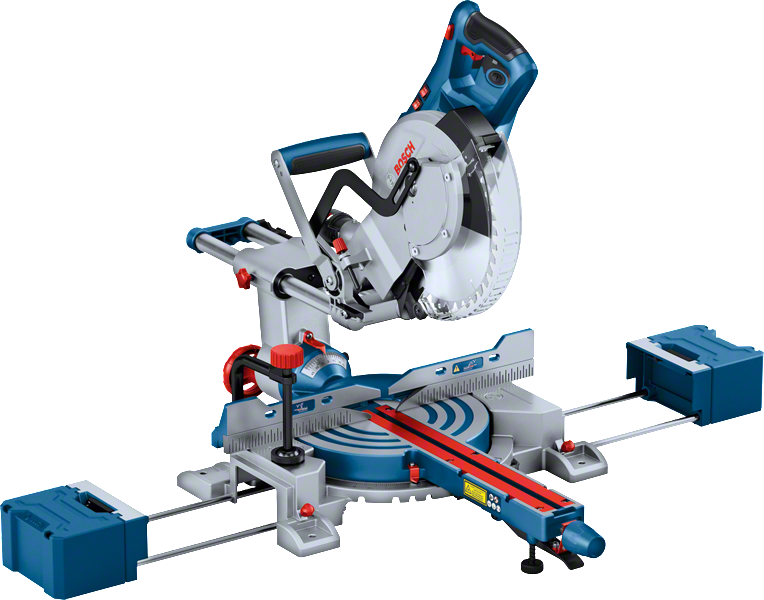

Bosch GCM 305-254 D Professional Mitre Saw
0601B49140
FREE ANGLE MEASURER VIA REDEMPTION
With its powerful motor, the GCM 305-254 D Professional offers enough cutting performance even for ambitious cuts. The mobile miter saw uses detachable work piece supports and long table extensions to make cutting long materials easy and simple. Higher comfort and flexibility in demanding cuts are ensured by its dual bevel settings with ergonomic bevel lock wheel.
Cuts up to 90 x 305 mm: the mobile, lightweight, and ergonomic miter saw
Strong cutting performance for toughest cuts
Easy controlling of long materials during cutting by detachable workpiece supports and long table extensions
Dual bevel function for convenient cutting
Equipment & Application
Cross cuts, miter cuts, and bevel cuts in wood, aluminium, and PVC plastic can be done perfectly with the GCM 305‐254 D Professional. The mitre saw is compatible with all Bosch dust extractors, GTA saw stands, and saw blades for corded miter saws.
Additional Information
The mobile miter saw comes up with higher precision due to the dual laser lines display to the left and right of the saw blade. It is light and compact and the various one- or two-handed carrying options make transport easy.
Technical data
Cutting capacity, 0°
90 x 305 mm
Cutting capacity, 45° mitre
90 x 215 mm
Cutting capacity, 45° bevel
55 x 305 mm
Mitre setting
48 ° L / 48 ° R
Bevel setting
47 ° L / 47 ° R
Tool dimensions (width x length x height)
500 x787 x662 mm
No-load speed*
4,500 rpm
Saw blade diameter
254 mm
Saw blade bore diameter
30 mm
Weight*
19.8 kg
Rated input power
1,500 W
Packaging dimensions (width x length x height)
575 x 845 x 365 mm
